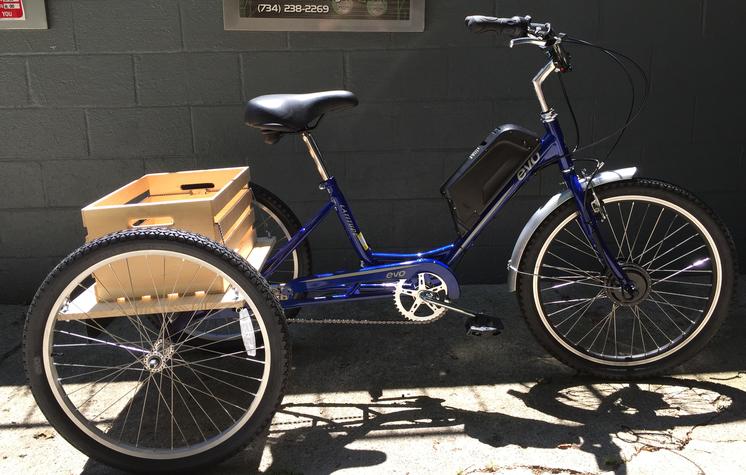

HEH/ EVO Bicycles Adult Trike
-350 watt, 520 watt peak front geared drive motor on 24" double wall eyelet rim with 12ga spokes
-Full LCD display / controller with throttle and 5 level pedal assist operation
-LCD displays trip stats, Speed, Power Usage, Pedal Assist Level, Battery Level, etc.
- 36v 13 ah Samsung Lithium frame mount battery quickly detaches and locks onto the frame for security.
-Ebrake motor cut-out function
-Rear Flatbed and Crate or wire basket.
Top Speed is 20+ MPH with an approximate range of 25+ miles at 18 MPH.
Custom eTrikes
HEH/ Worksman Bicycles Delta Trike
-1000 watt RH rear direct drive motor on 26" double wall eyelet rim with 12ga spokes
-EBikeKit system 36/48v compatibility, Full LCD panel with Speed, Battery Level, Assist Level, etc.
-48v 15ah Electric Rider Lithium Battery
-Ebrake motor cut-out function
Top Speed is 25+ MPH with an approximate range of 25+ miles at 18 MPH w / two riders.

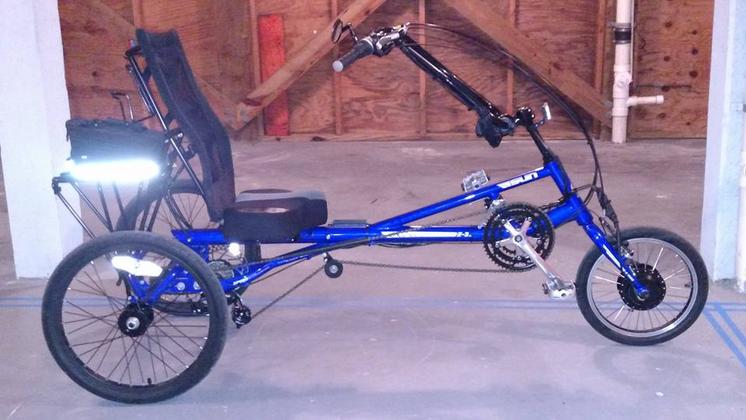

HEH/ Sun Bicycles 2012 T3
-1000 watt rear direct drive motor on 20" double wall eyelet rim with 12ga spokes
-Grin Technologies Infineon 3620 controller with throttle operation
-Five Level Power control and battery monitor with eZEE direct plug in display
- Two 48v 13 ah ALL CELL Lithium batteries mounted under the seat in dual custom aluminum battery enclosures. No hassle battery changes via custom A/B battery switch gear.
-Custom 60T front chainring and 11-32 DNP freewheel allow steady, comfortable cadence at over 30 MPH.
-Full lighting package with 10 amp 12v regulator powers Dual 600 Lumen Cree LED headlights, tail lights, brake lights, L,R turn signals, Front and rear running lights with 4 way flashers and even bike flag illumination all powered from the system main batteries - Never worry about charged lights!
- Front 20 x 3" Sunlight Flame tires and 20x 2.5" rear Maxxis Hookworm help to soften the ride!
- Topeak MTX rack, basket and quality Novera panniers finish up the rear.
Top Speed is 30+ MPH with an approximate range of 22 miles at FULL THROTTLE (30+MPH) and 45+ miles at 18-20 MPH.

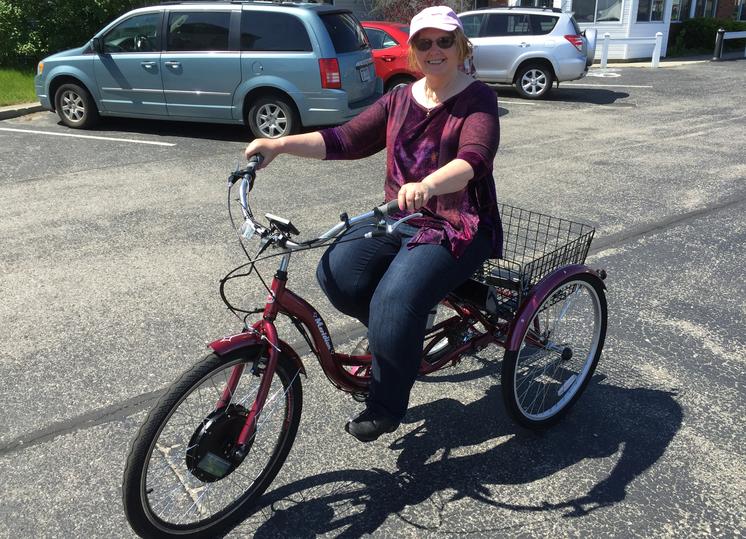

HEH/ Schwinn Bicycles Meridian Adult Trike
-1000 watt peak front direct drive motor on 26" double wall eyelet rim with 12ga spokes
-Full LCD display / controller with throttle and 5 level pedal assist operation
-LCD displays trip stats, Speed, Power Usage, Pedal Assist Level, Battery Level, etc.
- 48v 8 ah Samsung Lithium frame mount battery quickly detaches and locks onto the frame for security.
-Ebrake motor cut-out function
-Rear wire basket.
Top Speed is 25+ MPH with an approximate range of 15+ miles at 18 MPH.
H.E.H. Human Electric Hybrids LLC 279 N Hewitt Rd. Ypsilanti, MI 48197 (734) 238-2269
Tues-Thurs 11 Am - 7:00 Pm, Fri 11 Am - 5:30 Pm, Sat 11 Am- 5:00 Pm, Sun 11 Am-4:00 Pm
Mon By Appointment Only. Later and Earlier hours may be available by appointment.
HEH/ Sun Bicycles Delta Trike
-350 watt, 720 watt peak front geared drive motor on 20" double wall eyelet rim with 12ga spokes
-Grin Technologies Infineon 3620 controller with throttle and pedal assist operation
-Infinitely variable power and pedal assist control.
- 36v 10 ah ALL CELL Lithium battery mounted on rear Topeak MTX rack and quick detach luggage pack.
-Integrated direct plug Cycle Analyst 3 (CA3) for precise trip and battery level indication as well as cruise control option (and more)!.
-Ebrake through CA3
Top Speed is 18+ MPH with an approximate range of 20+ miles at 15 MPH.
Here are a few custom Trikes we've built for our customers. This page is to help you understand what can be accomplished and what you could expect the results to look like when completed.

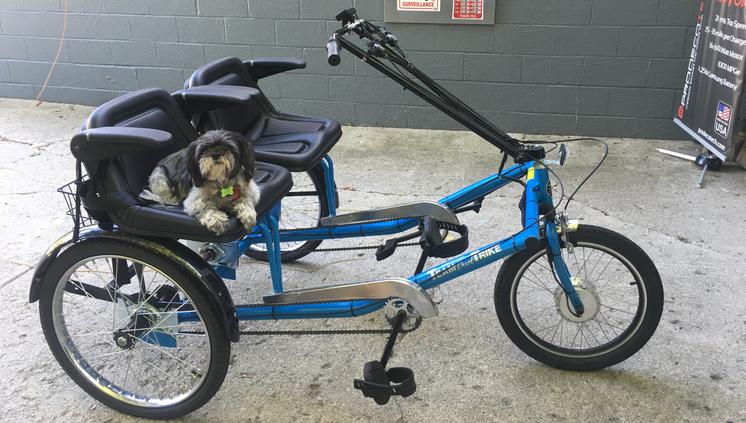

HEH/ Worksman Bicycles Team Trike
-500 watt peak front direct drive motor on 20" double wall eyelet rim with 12ga spokes
-Grin Technologies Infineon 3620 controller with throttle operation
-Five Level Power control and battery monitor with eZEE direct plug in display
- 36v 12 ah Sealed Lead Acid Battery (SLA)
-Ebrake motor cut-out function
Top Speed is 15 MPH with an approximate range of 10+ miles at 12 MPH w / two riders.

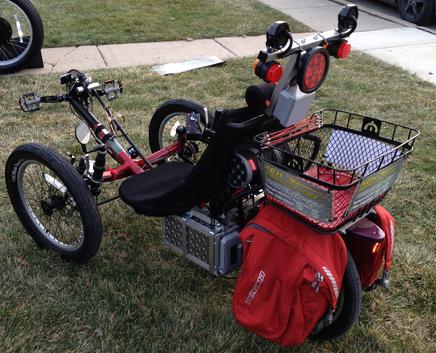

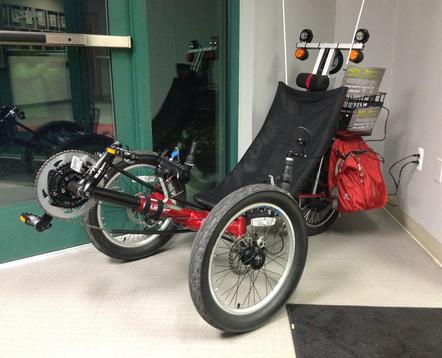

Customer's Tim and Deb's TerraTrike..
-'Lectric Cycles 1000 watt mid drive replaces the entire stock Bottom Bracket.
-Lekke 42T Bling Ring Alloy Narrow / Wide Chain Ring transfers power to stock rear gears.
-'Lectric Cycles color LCD display, shift sensing technology, eBrake motor inhibit sensors.
- Two 48v 20ah Lithium batteries mounted behind the seat on custom battery tray. No hassle battery changes via custom A/B battery switch gear.
-Integrated Cycle Analyst 3 (CA3) from Grin Technologies keeps extremely accurate trip stats and battery level. CA3 can also take over throttle control to give infinitely variable power control, cruise control, data logging and other advanced eBike features.
Top Speed is 35+ MPH with an approximate range of 140+ miles at 18-20 MPH. See performance report from the owners here...
