Electric Bicycles For Sale
Price - $1899.00 Please call to place order
EFB2WD 5.0 2KW
EFB2WD 5.0 4KW
Price - $2899.00 Please call to place order

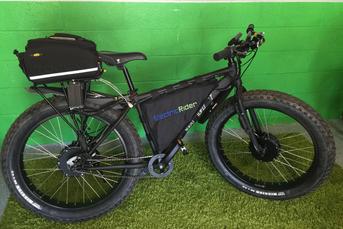

New rear wheel drive EFB 3.0 shown here with optional frame bag (battery can be mounted in the frame bag).
EFB 5.0 2KW with optional rack mount Battery
POWERED BY ELECTRIC RIDER LITHIUM BATTERIES!
A fine example of what is possible in an eBike is shown here. Our customer wanted a powerful, custom cruiser with long range. So we built this SIKK cruiser with Front 2KW Phoenix II DD motor and a rear 1KW FAT MAC motor to give some torque with a punch on acceleration. Powering all of this is a custom 48v 28.2ah LiMn battery enclosed within a custom wood-fiberglass battery case. Keeping all of the business under control are Grinfineon controllers with a V3 Cycle Analyst. We later added an ADDITIONAL 48v 26ah battery on a rear rack to give an incredible 2,500 watt hour (total) power pack! Bringing it all to a stop are upgraded BB7 brakes.
Top Speed is in excess of 35 MPH. If you keep the speeds reasonable at 20 MPH or so, then range is in the area of 55-70 miles.
Call us with your dreams - We can make them come true!
The H.E.H. EFB 5.X Series Dual Wheel Drive Electric Fat Bikes (EFB2WD)

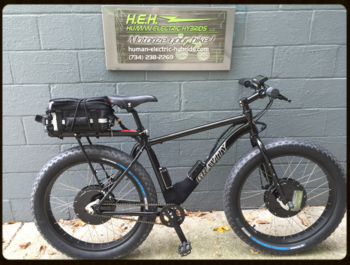

EFB 5.0 2KW with Optional Ebike-Kit geared hub motors and powered by Electric Rider frame mount battery.
EFB 4.0 1KW
The H.E.H. EFB 4.0 1KW is an entry level Electric Fat Bike that still provides enough power and torque to literally BLOW away other similarly priced Fat eBikes available in the market while delivering with some sweet extras. There are "clown shoe" rims, 6061 alloy frame. A full function LCD panel with speed, battery level indicator, trip computer, 5 level Pedal assist modes, motor power output display and even an ambient temperature display. Enjoy a great, confident off road ride with a EFB 4.0 1KW. Assembled and tested in USA!
The sky is the limit, here, at H.E.H., so many, many options are available. Some examples are: Larger battery capacity upgrades, Integrated headlights, tail lights, signals, horns, racks, USB ports, etc.
- Gravity Bullseye Monster bike
- 160mm Disk Brakes
- Alloy 6061 Frame CR-MO Fork
- Clown Shoe Rims, Stainless Steel Spokes
- 1000 Watt Rear Geared Hub Motor
- Lithium 48v 8.7 ah Battery (Larger batteries available)
- Battery mounting options: Rigid Frame mount, Frame bag mount, Rear Rack
- Full Function LCD Dashboard
- 48v 20a Controller (1000 Watts Peak - Limited)
- RH Half Twist Throttle, 5 level PAS
- Weight approximately 55lbs (varies with options)
- Top Speed w 170lb rider 22+ MPH
- Frames color subject to availability
- Does not include lights, extra bags, racks, etc.
- 26"x4" tires. (26" x 3" tires available)
-All of our EFBs are built to order.
-Local pick-up or delivery are available (FREE DELIVERY within 10 miles)
-Otherwise, actual shipping charges are in addition to above price.
-Orders of complete bikes require approximately two weeks to ship.
-All of our complete bikes and custom kits are assembled and tested
for (at least) one complete battery cycle before shipping.
-If your bike is shipped, then you will need to be able to complete some assembly.
- install the front wheel, handlebars, pedals and rack, if necessary.
- All wiring connections will be made, you just need to plug together motor and battery connectors.
If you already own a Fat Bike, then there is a very good chance we can build a 2WD conversion kit for you. We also offer complete installation of similar systems on YOUR bike. Call for details.
Come back to this page often, it's still under construction. We'll be adding more exciting EFBs soon!
Price - $5999.00 Please call to place order

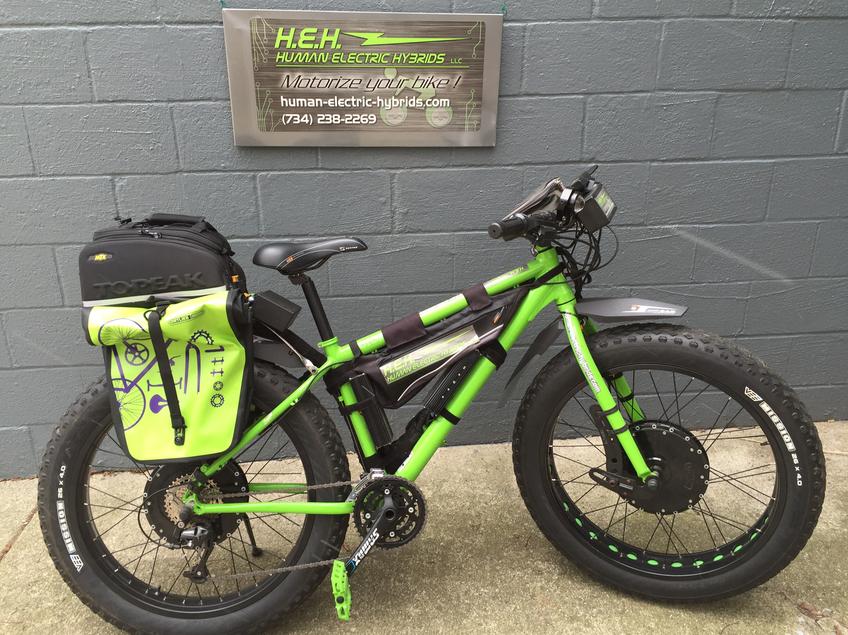

EFB 4.3 shown here. Phoenix II 7240 system with integrated 600 Lumen CREE LED headlight and fenders. Upgraded Avid BB7 Brakes.
H.E.H. Human Electric Hybrids LLC 25 S. Huron St. Ypsilanti, MI 48197 (734) 238-2269
Tues-Thurs 11 Am - 7:00 Pm, Fri 11 Am - 5:30 Pm, Sat 11 Am- 5:00 Pm, Sunday Closed
Mon By Appointment Only. Later and Earlier hours may be available by appointment.
EFB2WD 5.0 4KW (THE DOZER)
The H.E.H. EFB 5.0 4KW turbo charges the fun of a dual wheel drive fat bike. If you can't climb it with the 4KW power of this configuration, then possibly, you shouldn't be trying to climb it at all! The 4KW model just can't be stopped or matched for an off road eBike, especially if you go for the optional BRUTE motors. The BRUTE configuration provides an extreme amount of power to plow through or climb anything while still providing a nearly 30 MPH top speed (40+ MPH for Cruiser versions).
The sky is the limit, here, at H.E.H., so many, many options are available. Some examples are: Larger battery capacity upgrades, Integrated headlights, tail lights, signals, horns, racks, USB ports, etc.
- Motobecane FB4 Fantom frame (subject to availability, other frames available)
- 180mm front, 160mm Hydraulic Disk Brakes
- Alloy 6061 Frame
- Dual Wall Rims 12 Ga Stainless Steel Spokes
- Phoenix II Cruiser motors (BRUTE option available)
- Powered By Electric Rider (Built in USA) Lithium 48v 26ah Battery
- Battery mounting options: Rear Rack as show (Frame Bag possible with larger frames)
- Keyed ON/OFF Switch
- Cycle Analyst V3 Dashboard
- 4840 Controllers (3840 Watts Peak - Limited)
- RH Throttle standard (PAS is optional)
- Optional Regenerative Braking (keep those nuts tight!)
- Weight approximately 85lbs (varies with options)
- Top Speed w 170lb rider 40+ MPH
- Frames color subject to availability
- Optional 5 level front wheel torque control.
- Base level bikes include battery mounting enclosures
- Does not include lights, extra bags, racks, etc.
-All of our EFBs are built to order.
-Local pick-up or delivery are available (FREE DELIVERY within 10 miles)
-Otherwise, actual shipping charges are in addition to above price.
-Orders of complete bikes require approximately two weeks to ship.
-All of our complete bikes and custom kits are assembled and tested
for (at least) one complete battery cycle before shipping.
-If your bike is shipped, then you will need to be able to complete some assembly.
- install the front wheel, handlebars, pedals and rack, if necessary.
- All wiring connections will be made, you just need to plug together motor and battery connectors.
If you already own a Fat Bike, then there is a very good chance we can build a 2WD conversion kit for you. We also offer complete installation of similar systems on YOUR bike. Call for details.
Come back to this page often, it's still under construction. We'll be adding more exciting EFBs soon!
H.E.H. Human Electric Hybrids LLC 279 N Hewitt Rd. Ypsilanti, MI 48197 (734) 238-2269
EFB 4.0 1KW
EFB2WD 5.0 2KW
The H.E.H. EFB 5.0 2KW is our entry level dual wheel drive fat bike. It has plenty of power with High Torque Direct Drive motors to get through just about anything. Dual wheel drive Fat Bikes are a great way to get off road and be confident it will take you where you need to go. The 2KW model has enough power to pull you up nearly any incline, if you do need a little more power, then just give the pedals a bit of push and easily get over that ridge. You'll love blasting down two tracks in (nearly) complete silence.
The sky is the limit, here, at H.E.H., so many, many options are available. Some examples are: Geared Brushless hub motors, MAC or other motor upgrades, Integrated headlights, tail lights, signals, horns, racks, USB ports, etc.
- Gravity Deadeye Monster Single Speed
- 160mm Mechanical Disk Brakes
- Alloy 6061 Frame CR-MO Fork
- Dual Wall Rims 12 Ga Stainless Steel Spokes
- Ebike-kit High Torque Direct Drive Brushless Motors
- Powered By Electric Rider (Built in USA) Lithium 48v 15ah Battery
- Battery mounting options: Rear Rack (as show) or Frame Bag
- Keyed ON/OFF Switch
- Cycle Analyst V3 Dashboard
- 7225 Grinfineon Controllers (2250 Watts Peak - Limited)
- RH Throttle standard (PAS is optional)
- Optional Regenerative Braking (keep those nuts tight!)
- Weight approximately 75lbs (varies with options)
- Top Speed w 170lb rider 25+ MPH
- Black, White, Orange Frames currently available
- Optional 5 level front wheel torque control.
- Optional 16 Speed Bullseye versions available
- Base level bikes do not include lights, extra bags, racks, etc.
-All of our EFBs are built to order.
-Local pick-up or delivery are available (FREE DELIVERY within 10 miles)
-Otherwise, actual shipping charges are in addition to above price.
-Orders of complete bikes require approximately two weeks to ship.
-All of our complete bikes and custom kits are assembled and tested
for (at least) one complete battery cycle before shipping.
-If your bike is shipped, then you will need to be able to complete some assembly.
- install the front wheel, handlebars, pedals and rack, if necessary.
- All wiring connections will be made, you just need to plug together motor and battery connectors.
If you already own a Fat Bike, then there is a very good chance we can build a 2WD conversion kit for you. We also offer complete installation of similar systems on YOUR bike. Call for details.
Come back to this page often, it's still under construction. We'll be adding more exciting EFBs soon!
H.E.H. EFB (ELECTRIC FAT BIKE)
The EFB is available in a variety of power levels and battery options to fit into just about any eBike budget. Starting a just $1299 for the EFB 1.0
The EFB base starts out with a stock Mongoose Dolomite which sets the stage for a large number of possibilities. The EFB 1.0 gives the rider some solid assistance getting those fat tires down the road and up the hills. The 1.0 has a rugged front wheel direct drive brushless motor. The EFB 1.0 and 2.0 are street legal in most places (be sure to check your local laws, It's up to you to use your EFB legally.) The EFB 3.0 and 4.0 STEP UP the power! Want to climb hills with no pedaling? Ride two tracks, sand and snow with little to no pedaling? Then the top of the line EFBs are there to serve the thrills. Massive torque and top speeds of over 40 MPH will surely get the adrenaline pumping.
Here are the EFB bike speces:
-Medium Steel Frame and Fork. -Aluminum 4" rims and 26 x 4" all terrain tires.
-Front and Rear 160mm mechanical disc brakes. -7 Speed Drive train.
-Topeak MTX rear rack -Dual leg kickstand
H.E.H. EFB 1.0 -720 WATT MOTOR W/36 VOLT 10 AMP HOUR SLA BATTERY / CHARGER $1299.00
-36v 10ah downtube mounted lithium battery upgrade add $299.00 Rack mount options available.
-720 WATT FRONT DIRECT DRIVE MOTOR, 12 GA STAINLESS SPOKES (FRONT ONLY),36V, 10 AMP HOUR SLA BATTERY, CHARGER, BATTERY BAG MOUNTED ON REAR RACK. TOP SPEED 18-20 MPH, RANGE 6 - 15 MILES BASED ON RIDER
***NEW FAT MAC REAR WHEEL DRIVE OPTION AVAILABLE!*** + $299.00 (1000 W GEARED)
***NEW CROWN MOTOR REAR WHEEL DRIVE OPTION AVAILABLE FOR ALL EFBs !*** + $450.00
***NEW LARGER BATTERY OPTIONS AVAILABLE UP TO 48 VOLT 26.0 AMP HOUR (1,250 WATT/HOUR)**
H.E.H. EFB 4.0 -1440 WATT MOTOR W/36 VOLT 15 AMP HOUR LION BATTERY / CHARGER $2349.00
-1440 WATT FRONT PHOENIX II MOTOR, 12 GA STAINLESS SPOKES (FRONT ONLY), 36V,15 AMP HOUR LION BATTERY, CHARGER, BATTERY BOX MOUNTED ON TOPEAK MTX REAR RACK. FRAME BAG MOUNTING OPTIONS AVAILABLE, AVID BB7 BRAKES, TOP SPEED 30+ MPH, RANGE 12-25+ MILES BASED ON RIDER INPUT. PHOENIX II BRUTE OPTION AVAILABLE
H.E.H. EFB 4.1 -1200 WATT MOTOR W/48 VOLT 15 AMP HOUR LION BATTERY / CHARGER $2399.00
-1200 WATT FRONT PHOENIX II MOTOR, 12 GA STAINLESS SPOKES (FRONT ONLY), 48V,15 AMP HOUR LION BATTERY, CHARGER, BATTERY BOX MOUNTED ON TOPEAK MTX REAR RACK. FRAME BAG MOUNTING OPTIONS AVAILABLE, AVID BB7 BRAKES, TOP SPEED 28+ MPH, RANGE 12-25+ MILES BASED ON RIDER INPUT. PHOENIX II BRUTE OPTION AVAILABLE
H.E.H. EFB 4.2 -1920 WATT MOTOR W/48 VOLT 15 AMP HOUR LION BATTERY / CHARGER $2599.00
-1920 WATT FRONT PHOENIX II MOTOR, 12 GA STAINLESS SPOKES (FRONT ONLY), 48V,15 AMP HOUR LION BATTERY, CHARGER, BATTERY BOX MOUNTED ON TOPEAK MTX REAR RACK. FRAME BAG MOUNTING OPTIONS AVAILABLE, AVID BB7 BRAKES, TOP SPEED 35+ MPH, RANGE 12-25+ MILES BASED ON RIDER INPUT. PHOENIX II BRUTE OPTION AVAILABLE
H.E.H. EFB 4.3 -2880 WATT MOTOR W/72 VOLT 15 AMP HOUR LION BATTERY / CHARGER $2899.00
-2880 WATT FRONT PHOENIX II MOTOR, 12 GA STAINLESS SPOKES (FRONT ONLY), 72V,15 AMP HOUR LION BATTERY, CHARGER, BATTERY BOX MOUNTED ON TOPEAK MTX REAR RACK. FRAME BAG MOUNTING OPTIONS AVAILABLE, AVID BB7 BRAKES, TOP SPEED 40+ MPH, RANGE 10-30+ MILES BASED ON RIDER INPUT. PHOENIX II BRUTE OPTION AVAILABLE
-All of our EFBs are built to order.
-Local pick-up or delivery are available (FREE DELIVERY within 10 miles)
-Otherwise, actual shipping charges are in addition to above price.
-Orders of complete bikes require approximately two weeks to ship.
-All of our complete bikes and custom kits are assembled and tested for (at least) one complete battery cycle before shipping.
-If your bike is shipped, then you will need to be able to complete some assembly.
- install the front wheel, handlebars, pedals and rack, if necessary.
- All wiring connections will be made, you just need to plug together motor and battery connectors.
___________________________________________________________________________________________________________________________________
- The Massive torque available from a BBSHD motor WITH the top speed of a fast wind DD motor (without tearing up the bike!)
- Very large lithium batteries with REAL WORLD range of 50+ miles
- Integrated, powerful lighting systems that do not require external batteries
- Ride away with an eBike that is EXACTLY what you want with NO compromises.
EFB 3.0 shown here. 1000 watt direct drive motor system with 48v 10ah SLA Battery.
EFB XXX
The sky is the limit.
Imagine your next Electric Fat Bike having these characteristics...
-All of our EFBs are built to order.
-Local pick-up or delivery are available (FREE DELIVERY within 10 miles)
-Otherwise, actual shipping charges are in addition to above price.
-Orders of complete bikes require approximately two weeks to ship.
-All of our complete bikes and custom kits are assembled and tested
for (at least) one complete battery cycle before shipping.
-If your bike is shipped, then you will need to be able to complete some assembly.
- install the front wheel, handlebars, pedals and rack, if necessary.
- All wiring connections will be made, you just need to plug together motor and battery connectors.
If you already own a Fat Bike, then there is a very good chance we can build a 2WD conversion kit for you. We also offer complete installation of similar systems on YOUR bike. Call for details.
Come back to this page often, it's still under construction. We'll be adding more exciting EFBs soon!
This page contains (only) some of the possibilities that exist for custom Electric Fat Bikes. We can build just about any existing Fat Bike or Fat eBike into an awesome all season eBike that can take on just about anything you are looking for it to do.
