Here are a few custom Cargo and Special needs eBikes we've built for our customers. This page is to help you understand what can be accomplished and what you could expect the results to look like when completed.

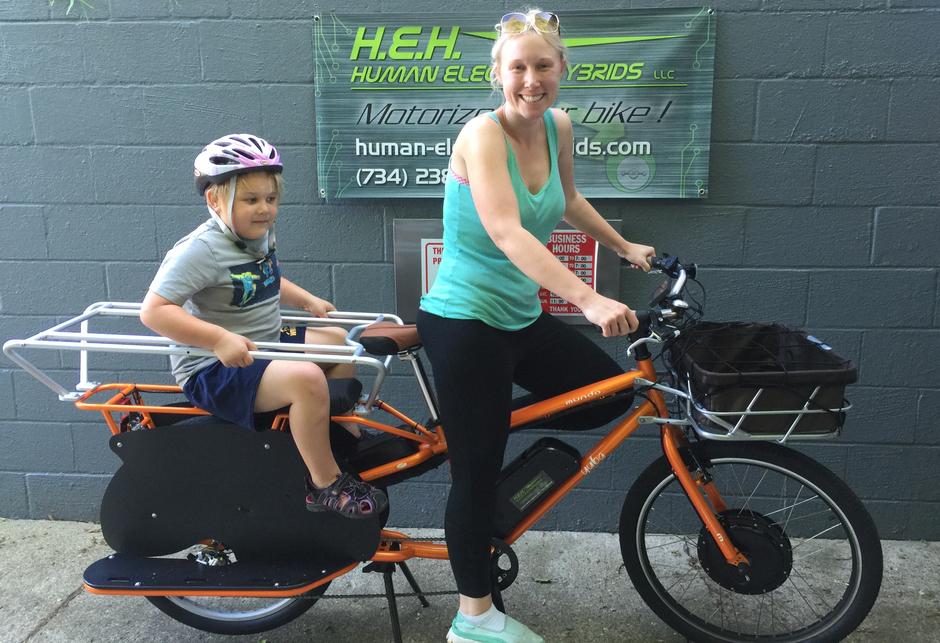

HEH / YUBA Bicycles Mundo 7 Cargo eBike
-1000 watt direct drive front motor laced with 12ga Stainless Spokes on 26" double wall, eyelet rim.
-48v 11.6ah Lithium battery mounted on Down Tube. Battery removes easily by unlocking and sliding off.
- eBrake motor inhibit sensors. Full LCD panel with Speed, Battery level, Trip computer, etc.
-Throttle and 5 level pedal assist modes.
-YUBA front Bread Basket, Monkey Bars, Running Boards and Soft Spot rear seat.
Top Speed is 25+ MPH with an approximate range of 15-35 miles (depending upon load and conditions) at 18-20 MPH.

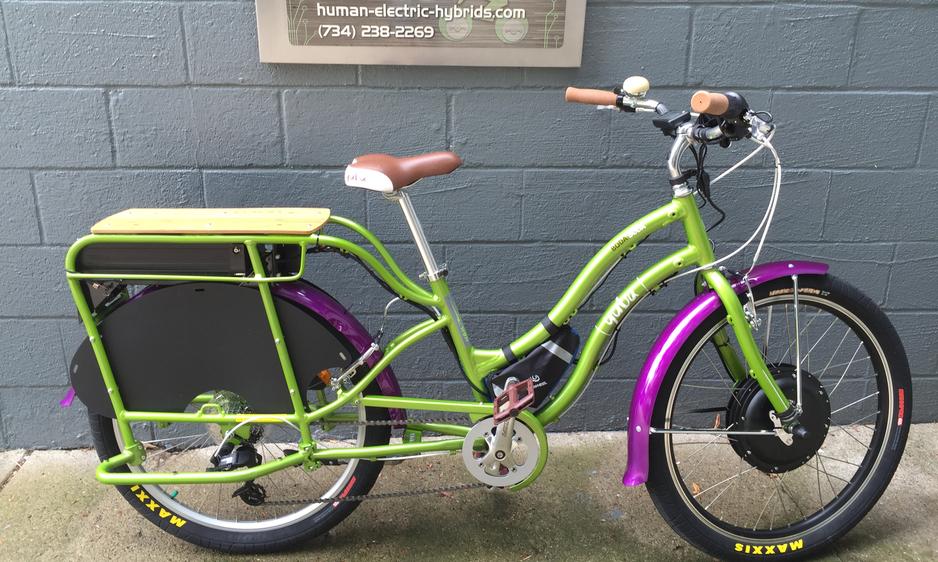

HEH / YUBA Bicycles BODA BODA Cargo eBike
-1000 watt direct drive front motor laced with 12ga Stainless Spokes on 26" double wall, eyelet rim.
-48v 10 ah Lithium battery custom mounted under rear deck. Battery removes easily by unlocking and sliding off.
- eBrake motor inhibit sensors. Full LCD panel with Speed, Battery level, Trip computer, etc.
-Throttle and 5 level pedal assist modes.
-YUBA Bamboo Deck. Custom Painted Steel Fenders, MAXXIS Hookworm 2.5" Heavy Duty tires.
Top Speed is 25+ MPH with an approximate range of 15-30 miles (depending upon load and conditions) at 18-20 MPH.
H.E.H. Human Electric Hybrids LLC 25 S. Huron St. Ypsilanti, MI 48197 (734) 238-2269
Tues-Thurs 11 Am - 7:00 Pm, Fri 11 Am - 5:30 Pm, Sat 11 Am- 5:00 Pm, Sunday Closed
Mon By Appointment Only. Later and Earlier hours may be available by appointment.

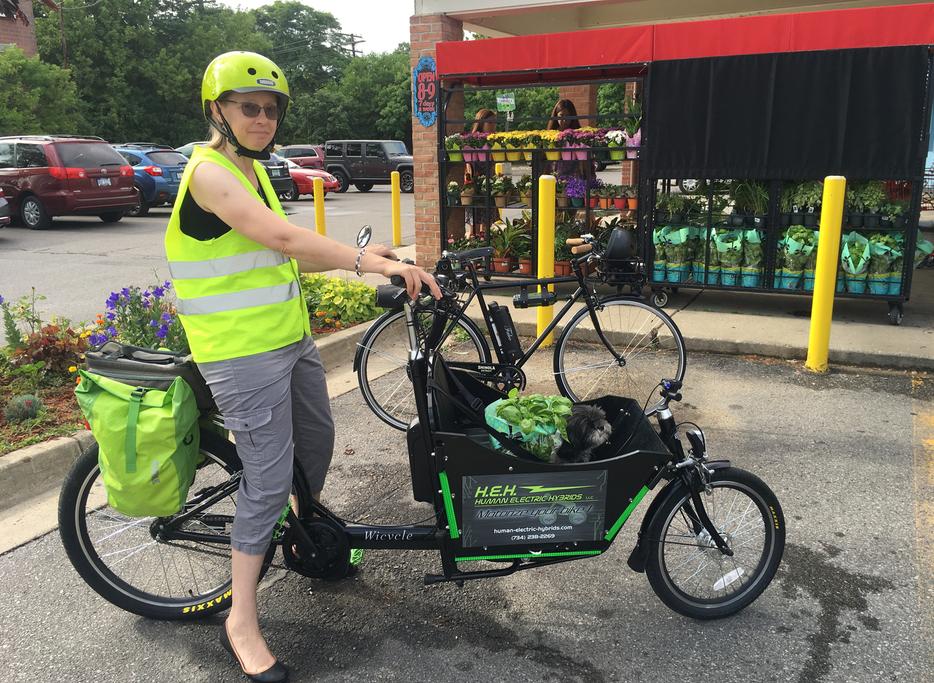

HEH / Wicycle Bicycles Cargo eBike
-750 watt mid-drive motor powering through heavy duty KMC chain and Shimano Nexus 7 speed hub.
-48v 14 ah Lithium battery easily removable from locking cradle
-Throttle and 5 level pedal assist modes.
-eBrake motor cut-out and Shift detection technology for smooth shifts
-MAXXIS Hookworm 2.5" Heavy Duty tires.
-Seating room for two small children w/ two seat belts.
Top Speed is 25+ MPH with an approximate range of 15-30 miles (depending upon load and conditions) at 18-20 MPH.
This bike is FOR SALE $1999.00
Cargo / Special needs ebikes

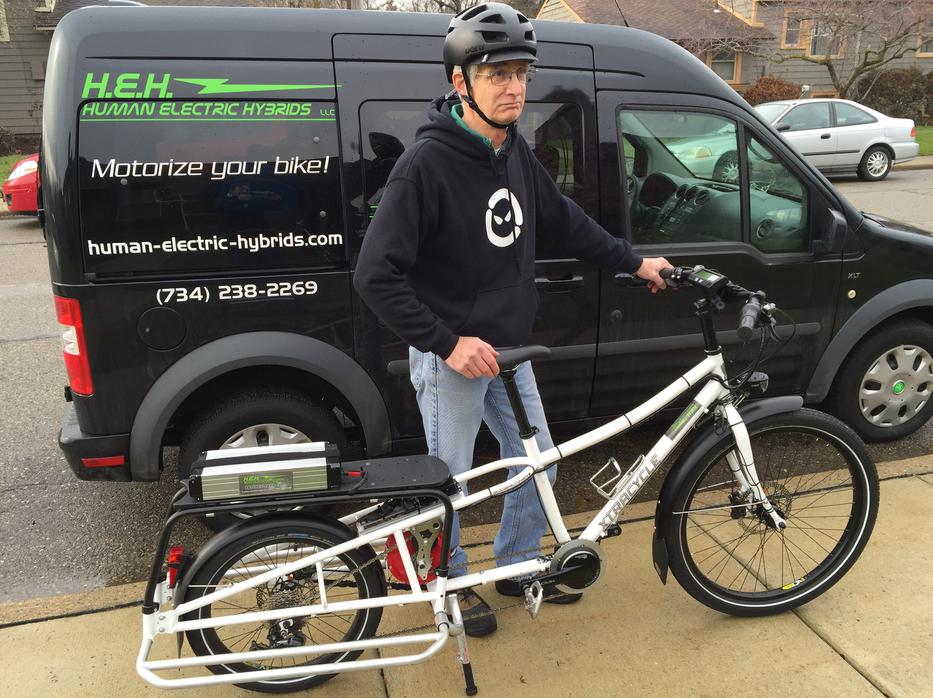

Xtracycle Edgrunner Cargo eBike
-1200 watt (peak) Stoke Monkey mid-drive motor.
-48v 10 ah Lithium battery.
-Integrated Cycle Analyst 3 (CA3) from Grin Technologies keeps extremely accurate trip stats and battery level. CA3 gives infinitely variable power control, cruise control, data logging and other advanced eBike features.
- Patterson Metropolis 175B two speed transmission.
-Throttle and Torque Sensor pedal assist modes. 3 mode power selection.
-eBrake motor cut-out .
Top Speed is 25+ MPH with an approximate range of 15-30 miles (depending upon load and conditions) at 18-20 MPH.

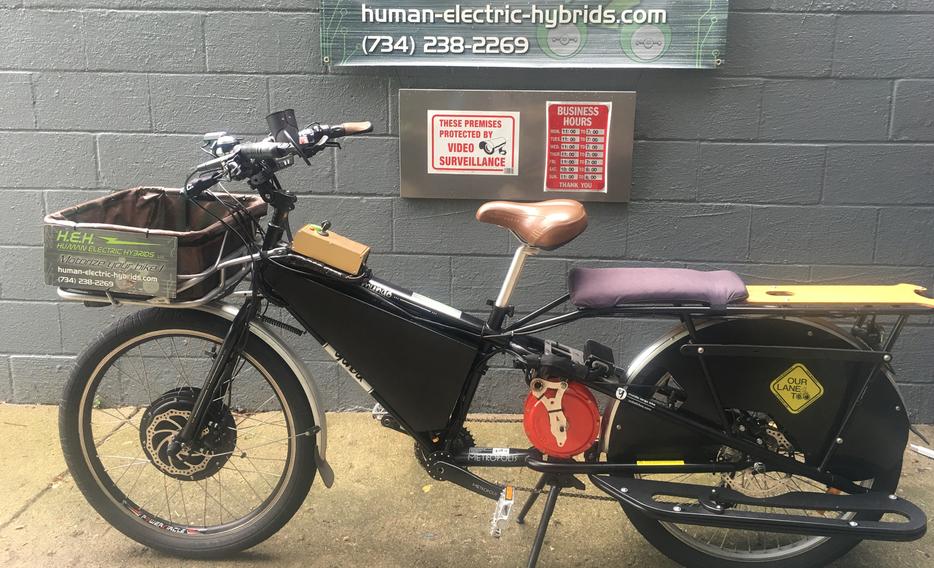

HEH / YUBA Bicycles MUNDO 21 Cargo eBike
-1000 watt direct drive front motor laced with 12ga Stainless Spokes on 26" double wall, eyelet rim.
-1200 watt (peak) Stoke Monkey Mid-drive powers back wheel w/ shift sensing technology..
-48v 20 ah Electric Rider Lithium battery mounted in hand built custom frame battery enclosure (wood / fiberglass).
-Integrated Cycle Analyst 3 (CA3) from Grin Technologies keeps extremely accurate trip stats and battery level. CA3 gives infinitely variable power control, cruise control, data logging and other advanced eBike features.
- Patterson Metropolis 175B two speed trans w/ Race Face Narrow/Wide chain ring, DNP 11-32 freewheel
- eBrake motor inhibit sensors. Full LCD panel with Speed, Battery level, Trip computer, etc.
-Throttle and 5 level pedal assist modes.
-Keyed ON/OFF Switch , 12v regulator with integrated 700 lumen headlight and tail light.
-180mm F and 160mm Rear Shimano Hydraulic disc brakes.
-YUBA Bamboo Deck, Bread Basket, Soft Spot, Bamboo Deck, Bike Tow running board.
-MAXXIS Hookworm 2.5" Heavy Duty tires.
Top Speed is 25+ MPH with an approximate range of 20-50 miles (depending upon load and conditions) at 18-20 MPH.

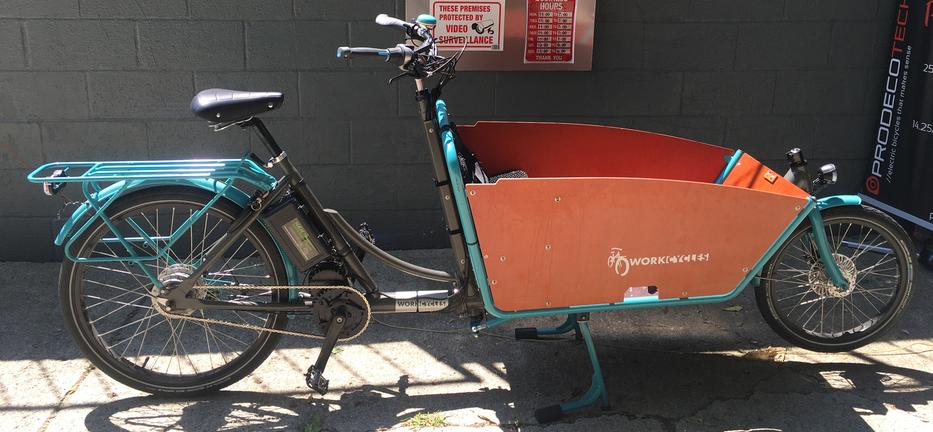

Workcycles Cargo eBike
(We didn't actually build this one, rather refined the motor / battery installation for customer)
-750 watt mid-drive motor powering through Nuvinci rear hub
-48v 7 ah Lithium battery tucked into enclosure behind seat post
-Throttle and 5 level pedal assist modes.
-eBrake motor cut-out and Shift detection technology for smooth shifts
-Seating room for a few children.
Top Speed is 20+ MPH with an approximate range of 7-15 miles (depending upon load and conditions) at 18-20 MPH.
